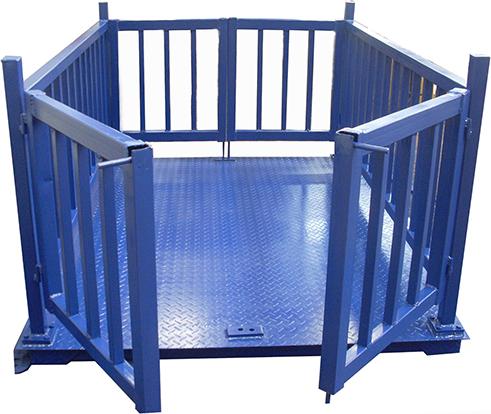

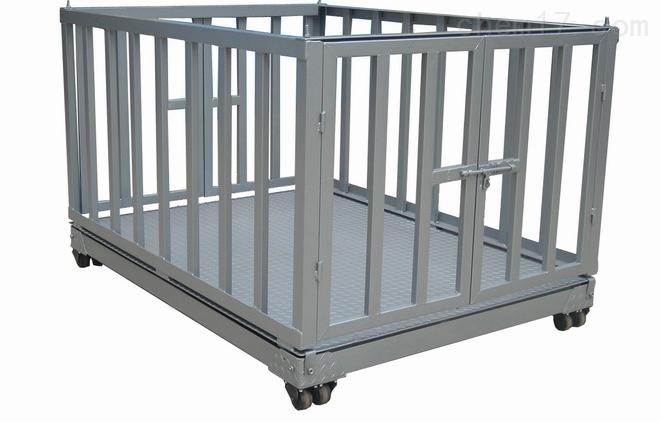

The electronic livestock scale is composed of a scale body, fence, weighing sensor, junction box, weighing display instrument, etc. In addition to measuring function, it can also be equipped with RS232 communication port, external large screen display, printer, weighing management software, and hardware equipment required for installing unmanned management system according to customer requirements.

Table size: customizable, with a net height of approximately 11cm from the ground (adjustable for plus or minus 2cm).

Fence height: customizable size

Weighing display: The connection distance between the scale body can be within 20 meters, and RS232 port is optional.

Maximum weighing: 1T, 2T, 3T, 5T, 10T, 20T, etc.

Optional micro printer, large screen, and unmanned management system.

Power supply voltage: 220VAC, 12VDC dual power supply

Protection level: IP65

Scale body material: Q235
